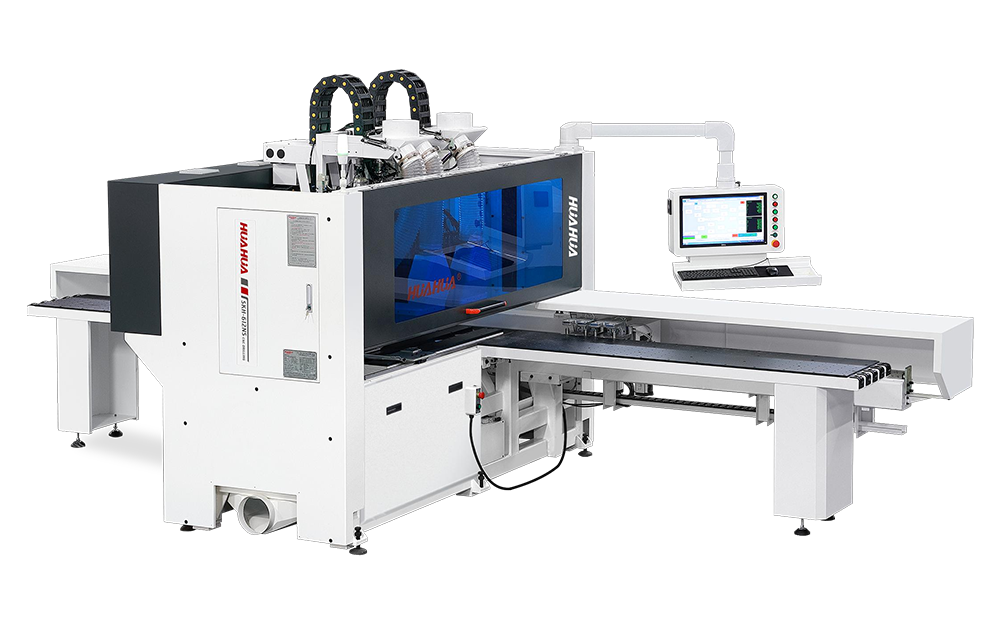

Features
Precision Double Drilling Heads
Six-sided machining, drilling, grooving, milling, to meet the needs of different productions.
Drilling bits:
Top: (Vertical 12 + Horizontal 8)*2 groups
Bottom: Vertical 9pcs
Milling spindle: 3.5kw * 2pcs (1 Top + 1 Bottom)
Simultaneous Processing
Two high-precision drilling heads for efficient machining, 20% higher production capacity than a single drilling head machine.
When two holes distance more than 85mm, two drilling heads simultaneous processing
Suit for Bathroom cabinet & kitchen cabinet production
Rack and Pinion Transmission
Both top and bottom drilling heads moving by Pinion and rack transmission, ensure process precision.
Taiwan Syntec Control System
1.Taiwan Syntec absolute value control, no need for homing, machine can be used immediately once power on.
2. High performance and stability during long service life;
3. Syntec after-sales service branches all over the world.
Taiwan Syntec Servo Motor
1.Taiwan Syntec servo motor control clamp, no need for homing, machine can be used immediately once power on.
2.The clamp moving speed can reach up to 130m/min, fast positioning and drilling
Scan QR Code Loading Processing Files
Support barcode / QR code, scan and automatically load processing graphics files like MPR, DXF, BAN, XML etc.,and automatically generate NC program processing
Compatible with Multiple Data Formats
The system shows the users with visual interface, friendly and succinct form, definite meaning of parameter, easy operation
Convenient and efficient opertion
Top Dust Collection
The different processes have different vacuuming ports, combinating blowing and vabuuming, the effect of removing dust is strong, reducing the failure rate and maintenance costs.
Optional
SKH-612NS optional side slot and surface slotting, ATC tool changer and match with side discharge lifting unloading table A variety of unloading options to facilitate automatic connection.
For more options, please consult our sales.
