Features
Double Precision Drilling Heads
Using HUAHUA independently developed CNC drilling heads, Manufacturing in accordance with international standards,After three-coordinate detection, the accuracy is guaranteed.
One time processing can complete panel 6-side drilling & 2-side grooving works.
Drilling bits:
Top: (Vertical 12 + Horizontal 8)*2 groups
Bottom: Vertical 9pcs
Milling spindle: 3.5kw * 2pcs (1 Top + 1 Bottom)
Taiwan HIWIN Ball Screw Drive
Using ball screw drive, the screw drive error is within 0.05-0.1MM, the cumulative error is within ±0.2MM, and the service life of the whole machine is improved.
Taiwan Syntec Control System
Taiwan Syntec control system + Taiwan Syntec servo motor
1.Taiwan Syntec absolute value control, no need for homing, machine can be used immediately once power on.
2. High performance and stability during long service life;
Double Drilling Heads Simultaneous Processing
When two holes distance more than 85mm, two drilling heads simultaneous processing
Suit for Bathroom cabinet & kitchen cabinet production
Industrial PC + 21-inch Color Screen
Using Industrial PC + 21-inch color screen to control the display,
Machine can connect internet or wifi, more easier for transfer processing data and remote control service
Scan QR Code Loading Processing Files
Support barcode / QR code, scan and automatically load processing graphics files like MPR, DXF, BAN, XML etc.,and automatically generate NC program processing.
Compatible with Multiple Data Formats
Convenient and efficient opertion
Data Analysis System
Bring your own database;
Record processing data.
Optional

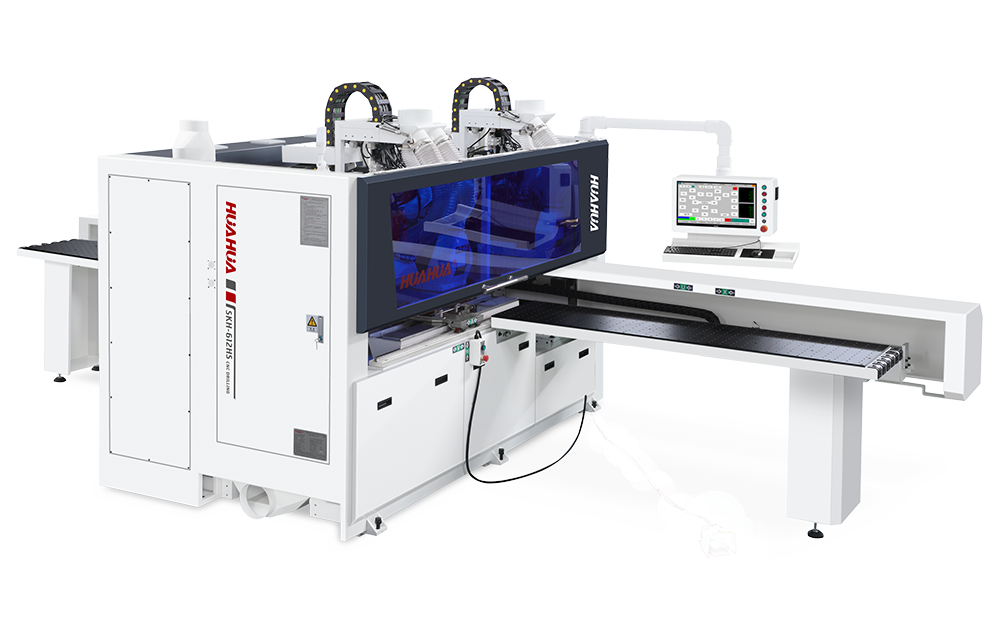

SKH-612HS can be equipped with front and rear rollers to become a automatic line, and can also be equipped with 4 clamps. For more options, please consult our salesman.
