Features
Precision Drilling Heads
Using HUAHUA independently developed CNC drilling heads, Manufacturing in accordance with international standards, After three-coordinate detection, the accuracy is guaranteed.
One time processing can complete panel 6-side drilling & 2-side grooving, and 4 sides slotting or Lamello works.
Drilling bits & spindel:
Top: Vertical 12pcs + Horizontal 8pcs
ATC tool: 4pcs + 6kw spindle
Aggregate head 4pcs tools + 9kw spindle
Bottom: Vertical 9pcs + 3.5kw spindle
360 Rotary Aggregate Head
9.5kw high speed spindle with ISO30 tool changer, 4 pcs tools suit for panel 4 sides slotting or Special hinge processing etc., to meet variety panel side special process demands.
Max. processing width: 650mm
4pcs Linear ATC Tool Magazine
Using 4pcs linear ATC tool magazine, suit for processing panel surface side and 4 sides slotting, Lamello processing, the corresponding tools can be automatically replaced according to different process requirements.
Max. processing width: 1135mm
Min. processing size:250*50mm
6 Sides Slotting and Lamello processing
6kw high speed spindle with 4pcs ATC tool changer.
Can process panel 6 sides slotting and lamello wroks.
Taiwan HIWIN Ball Screw Drive
Using ball screw drive, the screw drive error is within 0.05-0.1MM, the cumulative error is within ±0.2MM, and the service life of the whole machine is improved.
Taiwan Syntec control system
Taiwan Syntec control system
1.Taiwan Syntec absolute value control, no need for homing, machine can be used immediately once power on.
2. High performance and stability during long service life;
3. Syntec after-sales service branches all over the world.
Taiwan Syntec servo motor
1.Taiwan Syntec servo motor control clamp, no need for homing, machine can be used immediately once power on.
2.The clamp moving speed can reach up to 130m/min, fast positioning and drilling
Double clamps
The double gripper mechanism is adopted to automatically control the feeding and positioning of the panel according to the computer drilling program.
Industrial PC + 21-inch color screen
Using 21-inch color screen to control the display,
Machine can connect internet or wifi, more easier for transfer processing data and remote control service
Compatible with Multiple Data Formats
Support barcode / QR code, scan and automatically load processing graphics files like MPR, DXF, BAN, XML etc.,and automatically generate NC program processing
Convenient and efficient opertion
Optional

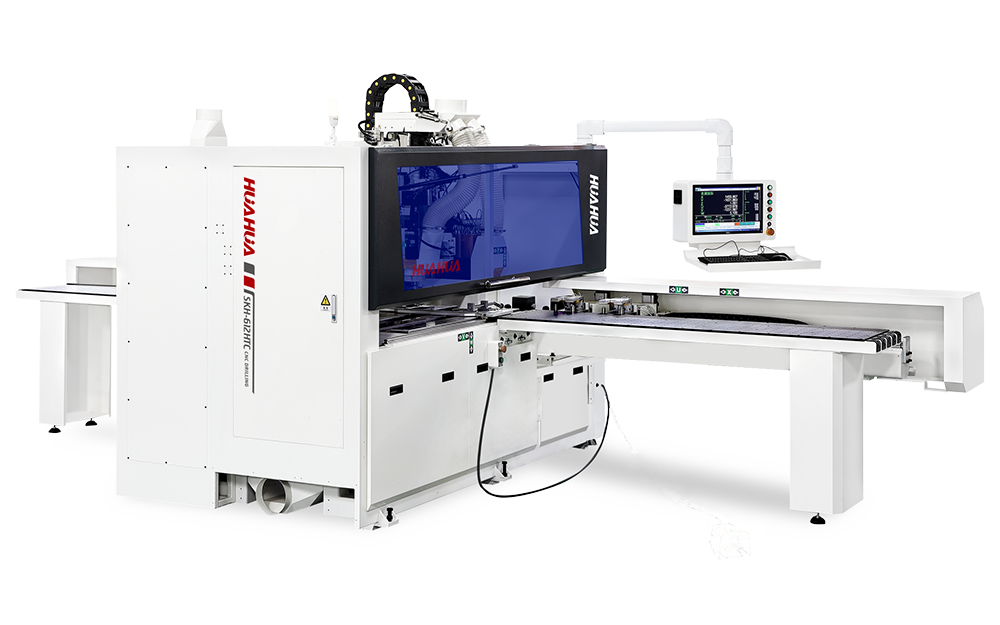

SKH-612HTC can option automatic side discharge table, or automatic loading and unloading roller and HHM nesting software.
For more options, please consult our sales.
